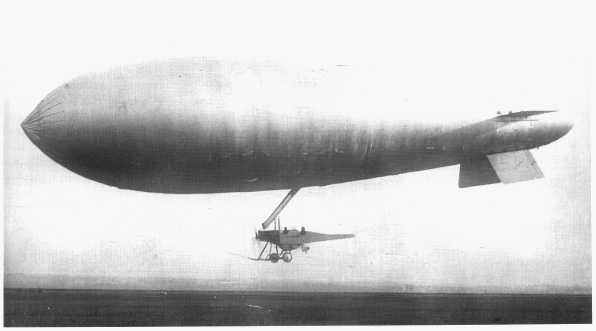

Ship Identification : SS AIRSHIPS (Farman Car)


SS Airships (Maurice Farman cars)

Envelope capacity...................................................... 60,000 or 70,000 cubic feet
Ballonets................................................................... (two) capacity 12,750 or 19,600 cubic feet
Length....................................................................... 143 feet 5 inches
Diameter................................................................... 30 or 32 feet
Height....................................................................... 43 feet 5 inches
Plane area (each)....................................................... 110 square feet
Car length.................................................................. 20 feet
Engines..................................................................... 75hp Renault air-cooled
Propeller Four-bladed.................................................
9 feet diameter
Petrol tanks.............................................................. Capacity 64 gallons
Water ballast............................................................. capacity 19 gallons
Gross lift................................................................... (larger envelope) 2.2 tones
Disposable lift (smaller envelope)................................. 0.6 tons
Disposable lift (larger envelope)................................... 0.8 tons (approx.)
Endurance at full speed.............................................. 7-8 hours
Endurance at half throttle............................................ 14-16 hours
Top speed................................................................. 40 mph
Climb........................................................................ 790 feet per minute
Turning circle............................................................. 47 seconds minimum, 180 yards diameter



See SS BE2C Class ships for logs

Related ships: SS Ships
